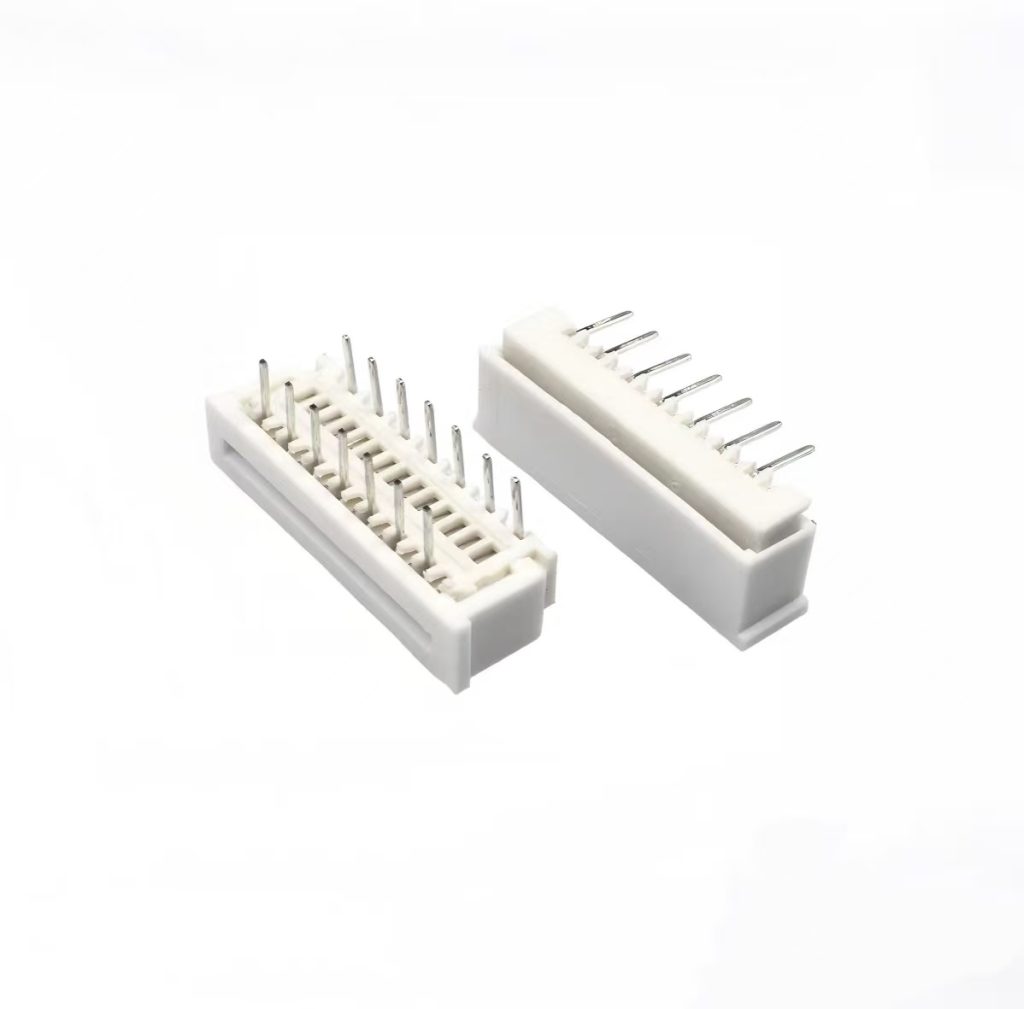

1.25mm 0.05inch Pitch Right Angle FPC Connector With Friction Lock for PLC Displays
1.25mm 0.05inch Pitch Right Angle FPC Connector With Friction Lock for PLC Displays
Product Specifications
Rated Current1.0A AC/DC
Contact resistance100mΩ Max
Rated Voltage50V AC/DC
No. of Positions4-30PIN
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialLCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
Our 1.25mm Pitch Right Angle FPC/FFC Connector is a high-reliability interconnect solution featuring an integrated Friction Lock mechanism. Designed for through-hole mounting with a Bent-pin (Right Angle) configuration, this connector is available in 4 to 30 positions to meet diverse circuit requirements. The robust white thermoplastic housing and precision-engineered locking tabs ensure a secure, vibration-resistant mate with flexible flat cables, making it an excellent choice for automotive infotainment, industrial automation panels, and durable consumer appliances.
Key Features
- 0.05" (1.25mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
