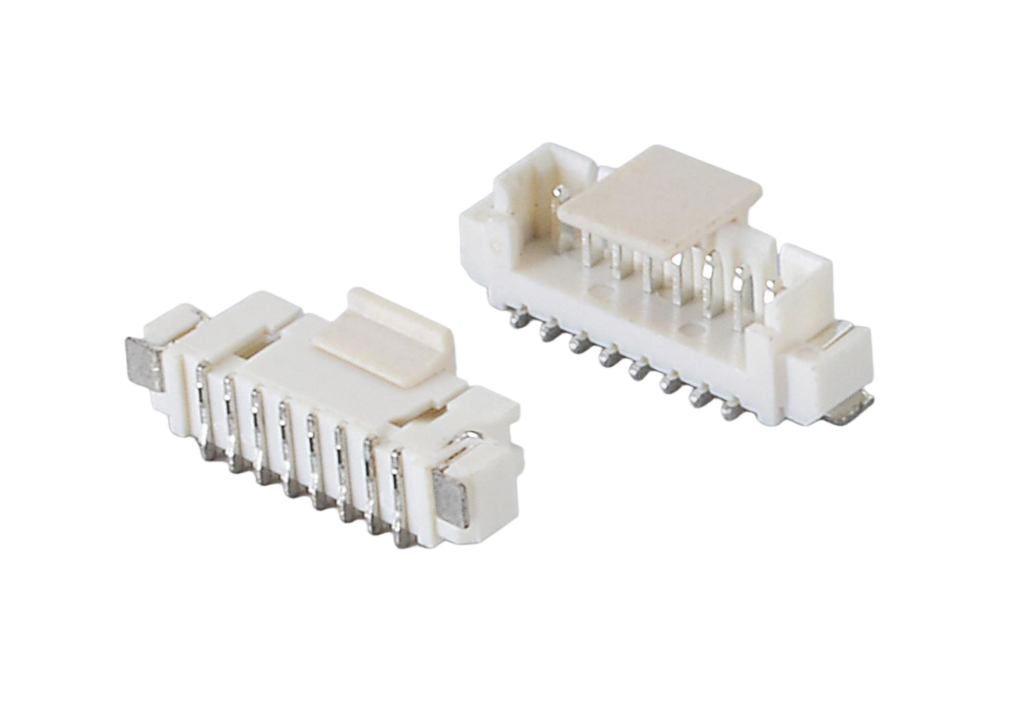

1.25mm 0.049 inch Wafer Socket Top Entry Vertical SMD for Wearable Electronics PCB Board
1.25mm 0.049 inch Wafer Socket Top Entry Vertical SMD for Wearable Electronics PCB Board
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-16Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 1.25mm Pitch SMT Wafer Connector is an ultra-miniature wire-to-board solution engineered for modern electronic applications where board space is at a premium. Featuring a specialized 1.00mm (0.049") pitch, this vertical SMT header provides a reliable signal and power interface for high-density PCB designs used in smartphones, wearable technology, and smart home sensors. The integrated top friction lock and reinforced solder tabs ensure a secure mechanical bond and vibration-resistant connection, making it ideal for drones and portable medical equipment. Its heat-resistant housing is fully compatible with lead-free reflow soldering processes, ensuring long-term performance in industrial and consumer electronics.
Key Features
- 0.049" (1.25mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
