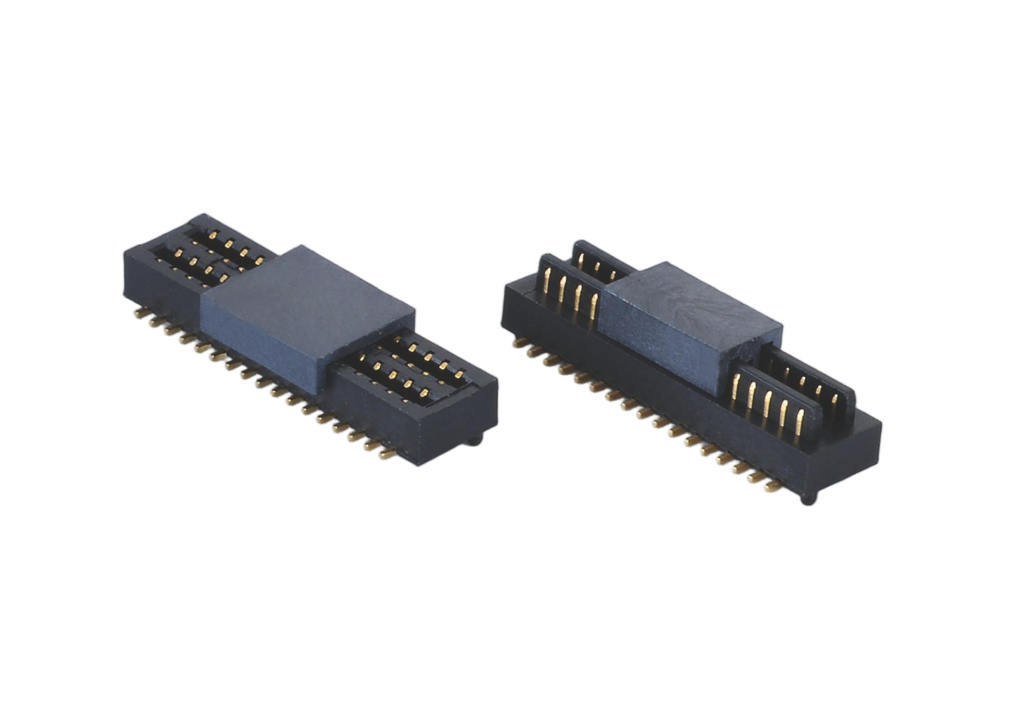

0.5mm 0.020in SMD Top Entry Board to Board Connector For Automotive Instrument Cluster

The 0.5 mm (0.020 in) Board-to-Board Connector is designed to provide high-density and reliable interconnections between printed circuit boards in compact electronic systems. With its fine-pitch structure, this connector enables efficient signal routing while minimizing PCB space, making it ideal for advanced consumer electronics and industrial miniaturized designs.

Featuring a low-profile board-to-board configuration, the connector supports vertical or stacking connections depending on the mating type. It is compatible with automated SMT assembly and standard reflow soldering processes, ensuring consistent quality and high production efficiency. The housing is manufactured from high-temperature, flame-retardant thermoplastic, offering excellent dimensional stability and resistance to thermal stress.

Precision copper alloy contacts are plated to provide low contact resistance, stable signal integrity, and long-term reliability. The connector is designed to support high-speed signal transmission while maintaining secure mechanical engagement. Alignment and polarization features ensure accurate mating, reducing the risk of misalignment during assembly.

The 0.5 mm Board-to-Board Connector is widely used in smartphones, tablets, laptops, wearable devices, display modules, and communication equipment where compact size, high signal density, and reliable performance are essential.

Key Features

• 0.020" (0.5mm) pitch for standard PCB layouts
• .006" (0.15mm）square post contact system  mm) square post contact system
• Vertical and right-angle orientations available
• Fully automated production for consistent quality
• 100% CCD visual inspection to ensure defect-free products
• Multiple plating options to enhance durability and conductivity
