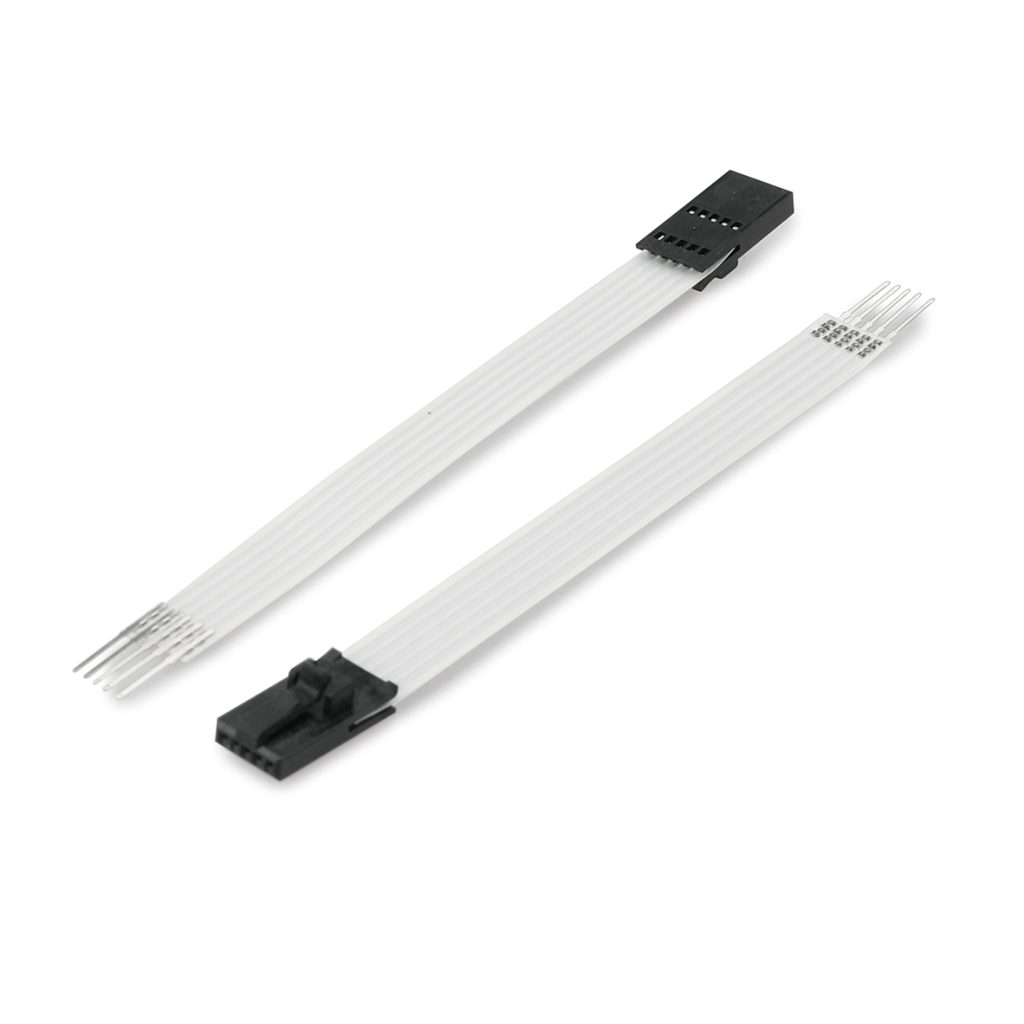

UL Flat Ribbon Cable Assembly with DuPont Connector and Solder Terminals

This high-performance flat ribbon cable assembly is engineered for seamless board-to-board interconnectivity and high-density internal signal routing. Featuring a flexible, low-profile design, this multi-conductor flat cable excels in space-constrained environments where reliable data transmission is paramount. One end of the assembly is professionally terminated with a multi-pin DuPont connector housing (featuring a secure locking tab to prevent accidental disconnection caused by industrial vibration). The opposite end is precisely processed with exposed, pre-tinned solder terminals or male pins, enabling direct integration into printed circuit boards (PCBs) or secondary termination blocks.

Optimized for application within data centers, industrial computing, and advanced consumer electronics, this versatile ribbon cable delivers excellent mechanical flexibility, minimal crosstalk, and consistent electrical continuity across all channels. The thin, parallel structure not only facilitates clean cable management within dense equipment enclosures but also enhances internal airflow and cooling efficiency. Manufactured under strict quality management frameworks, the insulation layer boasts high dielectric strength and flame-retardant properties to ensure long-term operational safety. This interconnect solution is ideal for technicians and engineers seeking to optimize peripheral wiring, display module links, or control board routing. By choosing this robust cable structure, system integrators can achieve precise signal alignment, minimize voltage drops, speed up assembly line throughput, and guarantee long-term performance stability in modern electronic hardware applications.

Key Features

• The low-profile, parallel flat ribbon structure provides maximum flexibility and space efficiency for compact electronic enclosures
• Equipped with a high-quality female DuPont housing containing a robust locking mechanism to resist shock and accidental unmating
• The exposed conductors on the secondary side are precisely stripped and pre-tinned, ensuring effortless, high-reliability PCB soldering
• Engineered with premium copper conductors that ensure low electrical resistance, minimal signal distortion, and superior crosstalk reduction
• Perfectly suited for internal signal routing and board-to-board data communication in industrial automation, data center IT systems, and home appliances
