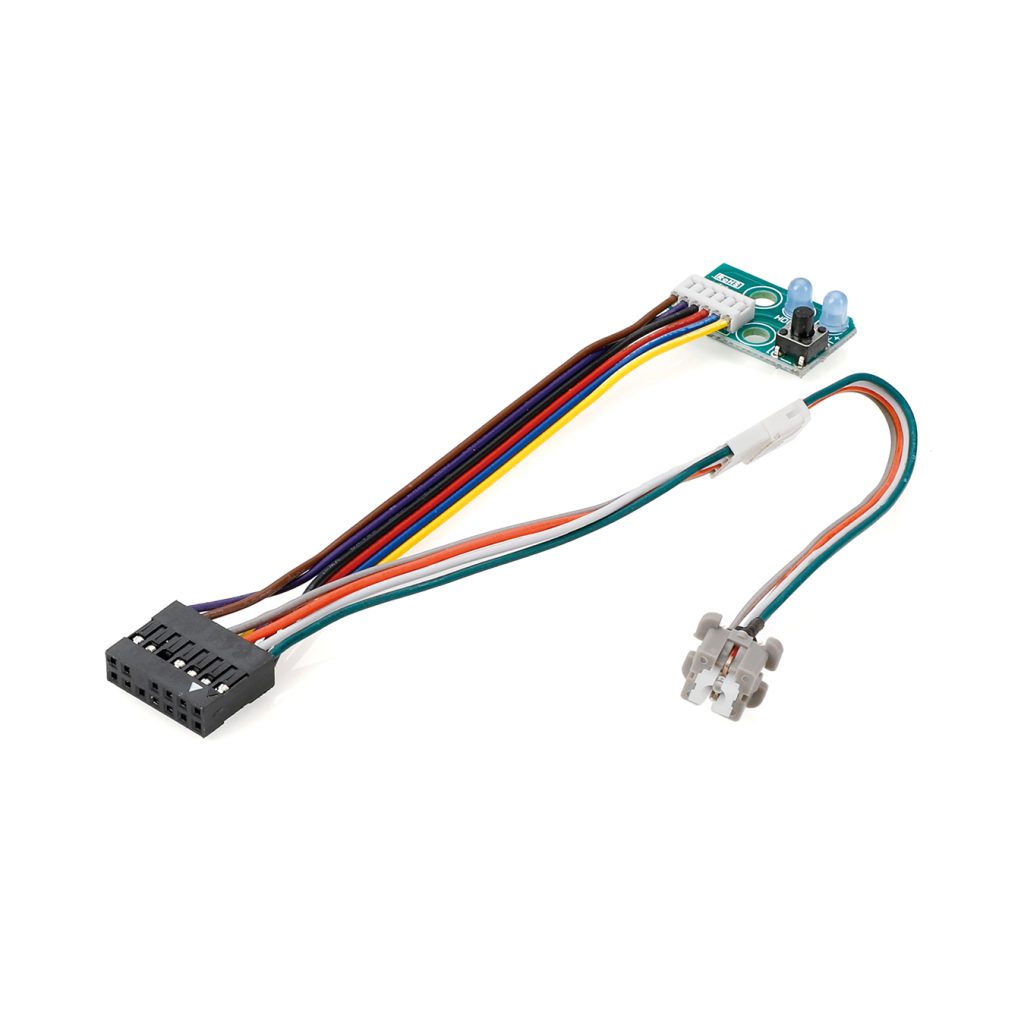

UL Multi Conductor Wire Harness with Switch Board for Electronic Control

Optimize your device internal connectivity with this high-precision multi conductor wire harness from YYE (Dong Guan City Yuan Yue Electronics Co., Ltd.). Specifically engineered for seamless signal transmission and power distribution, this comprehensive cable assembly integrates a secure dual row female connector interface link directly with a functional printed circuit board assembly. The integrated miniature PCB module features a tactile push button switch alongside dual LED light indicators, making it an ideal choice for front panel controls, power switching interfaces, and user interaction modules in modern electronic hardware setups.

Constructed using flexible multi color insulated lead wires, this wiring harness simplifies trace routing within tight enclosures while visually organizing separate data channels. Each discrete conductor utilizes high conductivity copper material to minimize voltage drops and guarantee premium electrical integrity across long operational lifecycles. The durable pitch connectors ensure standard mating compatibility, preventing accidental disconnections from mild equipment vibration or mechanical shifting.

As a premier electronic connector manufacturer situated in Dongguan, China, YYE executes strict quality assurance inspections to maintain supreme product standards. This lightweight internal wiring assembly is widely deployed across consumer appliances, smart home devices, computing systems, and office automation hardware requiring integrated indicator displays. By embedding the switch board and connector interface into one unified harness layout, YYE offers streamlined production processing that lowers total installation cost for global contract manufacturers and OEMs. Discover our complete technical catalog and enhance your commercial component supply chain by exploring the YYE official manufacturing portal at https://www.yyecon.com/ today.

Key Features

• Features an attached miniature PCB complete with a responsive tactile button and dual status LED indicators for functional user control
• Utilizes color-coded individual conductors to enable quick, error-free point-to-point routing and hassle-free diagnostic maintenance inside your device
• Equipped with a precision pitch double-row housing interface ensuring tight, shake-resistant mating to standard PCB pin headers
• Built with high-purity flexible copper strands that offer low electrical resistance and reliable performance for low-voltage signal applications
• Compact and highly flexible structural design makes it perfectly suited for crowded interior layouts in modern consumer appliances
