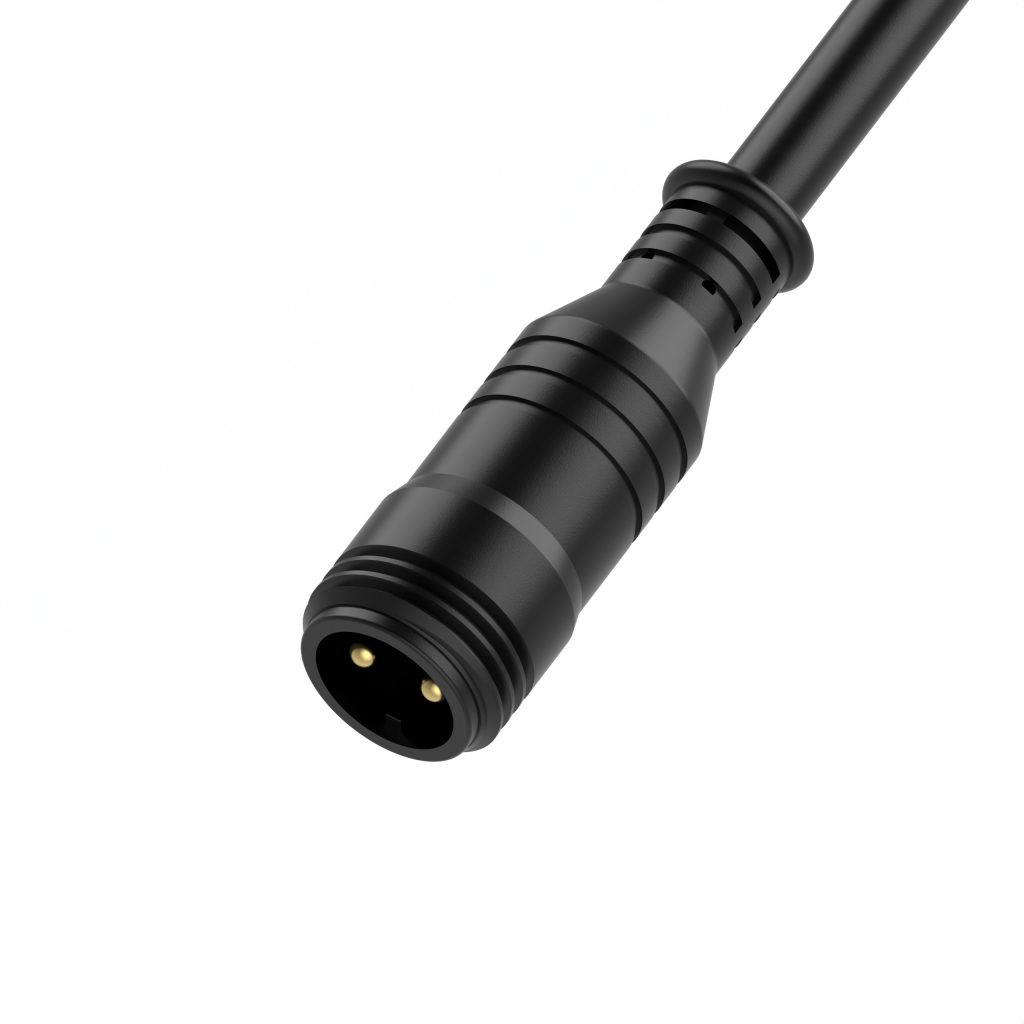

M16 Male Cable, A-coding, Straight, IP67/IP68
M16 Male Cable, A-coding, Straight, IP67/IP68
Product Specifications
Connector contactsCopper Alloy,Gold Plated
Contact configurationA Code : 2 Pin
Connector OvermoldPVC/ TPU
LengthCustomized
ShieldingOptional
OD6.5mm
IP rateIP67,IP68
Current rating4A AC/ DC
Voltage rating250V
Operating temperature-40°C ~ +80°C
Flame RatingUL94 V-0
WireVDE H05RN-F 2C(Brown、Blue)*0.75mm²
Product Description
Product Description
The M16 Male A-Coded Connector is a reliable industrial interconnect solution designed for signal and low-power transmission in automation and control systems. Commonly used in sensors, actuators, and industrial equipment, it provides secure mating and stable performance in demanding environments.
With an A-coding design to prevent mismating and an IP67-rated sealing structure (depending on configuration), the connector resists dust, moisture, vibration, and mechanical stress. Gold-plated contacts ensure low contact resistance and long service life, making it a cost-effective choice for industrial applications.
Key Features
- M16 male connector with A-coding
- UL, and RoHS compliant
- IP67/IP68 protection for harsh environments
- Optional shielding for EMI resistance
- Gold-plated contacts for reliable signal integrity
- High-flex cable available for dynamic applications
