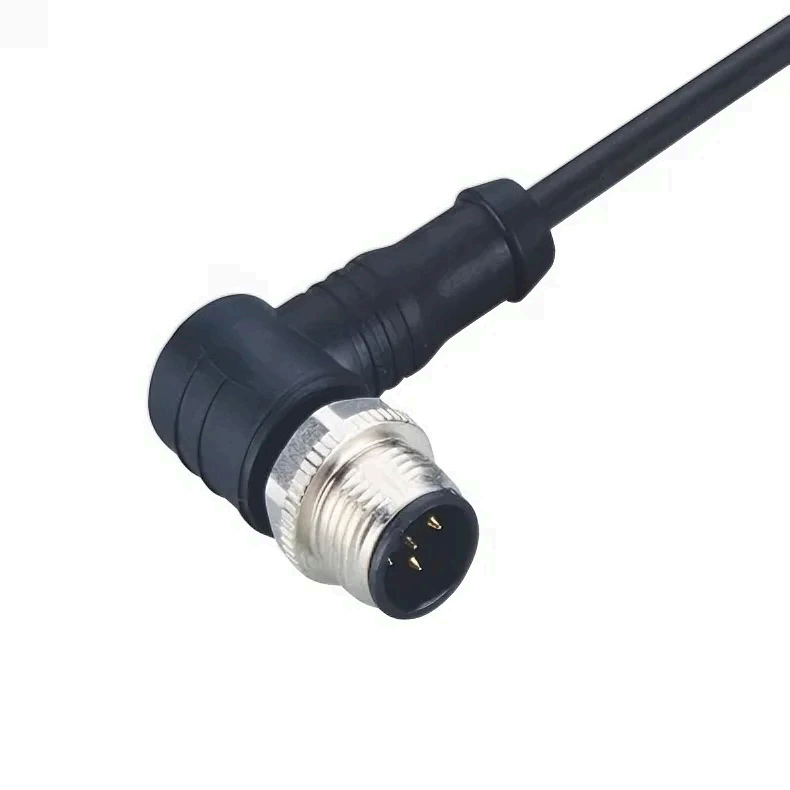

M12 Male 5 PIN A-coding Angled (Sensor and Actuator)

M12 Male 5 PIN A-coding Angled (Sensor and Actuator)

M12 Male 5 PIN A-coding Angled (Sensor and Actuator)
Send Inquiry

Product Specifications

Connector contacts Copper Alloy,Gold PlatedCopper Alloy,Gold Plated
Contact configurationA Code : 2,3,4,5,6,7,8,9,10,11,12 Pin D Code : 2,3,4,5 Pin
Connector OvermoldPVC/ TPU
LengthCustomized
ShieldingOptional
InsulatorTPU/ PA+GF
Current rating4A(2~5Pin);2A(6~8Pin);1.5A(9~12Pin)AC/ DC
Voltage rating250V(2~4Pin);60V(5Pin);30V(6~12Pin) AC/ DC
Operating temperature-40°C ~ +80°C
Flame RatingUL94 V-0
CertificationUL, CE, RoHS
IP rateIP67,IP68,IP69K in locked condition

Product Description

The M12 A-Coding Connector is a high-reliability, industrial-grade interconnect solution engineered specifically for sensor and actuator applications—the backbone of automated production lines, industrial machinery, and IoT-enabled equipment.
Designed to meet IEC 61076-2-101 standards, its A-coding configuration ensures secure, error-free mating with compatible sensors (e.g., proximity, photoelectric, pressure sensors) and actuators (e.g., solenoid valves, relays), preventing cross-connection with other M12 coding types (B/D/X).
Featuring a rugged, IP67/IP68-sealed housing (depending on variant), it withstands harsh industrial environments—including dust, moisture, vibration, and temperature fluctuations (-25°C to +85°C typical). The 3/4/5-pin contact options (common for A-coding) support signal, low-power data, and small-current power transmission (up to 4A per contact), making it ideal for short-distance, high-density wiring in factory automation, packaging machinery, and process control systems.
With crimp or solder termination options, it enables quick, tool-assisted installation for reduced downtime, while its gold-plated contacts ensure low contact resistance and long-term durability (10,000+ mating cycles). A cost-effective, industry-standard choice, this M12 A-coding connector delivers consistent performance for critical sensor-actuator communication.

Key Features

  • Flexible length and connector options
  • Optional shielding and high-flex materials
  • Compliance with UL, CE, RoHS
  • Customize cable length,connector,pins
  • Ideal for automation, outdoor energy storage, industrial robots, sensors
  • Vibration & Shock Resistant for Harsh Automation Environments

Related Products

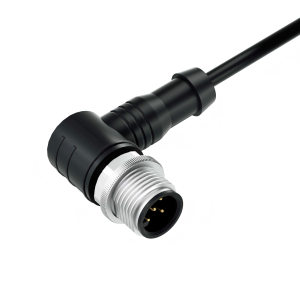

M12 Male 5PIN A-coding Angled Connector, Molded Cable,Shielded-automotion,robot,sensor
