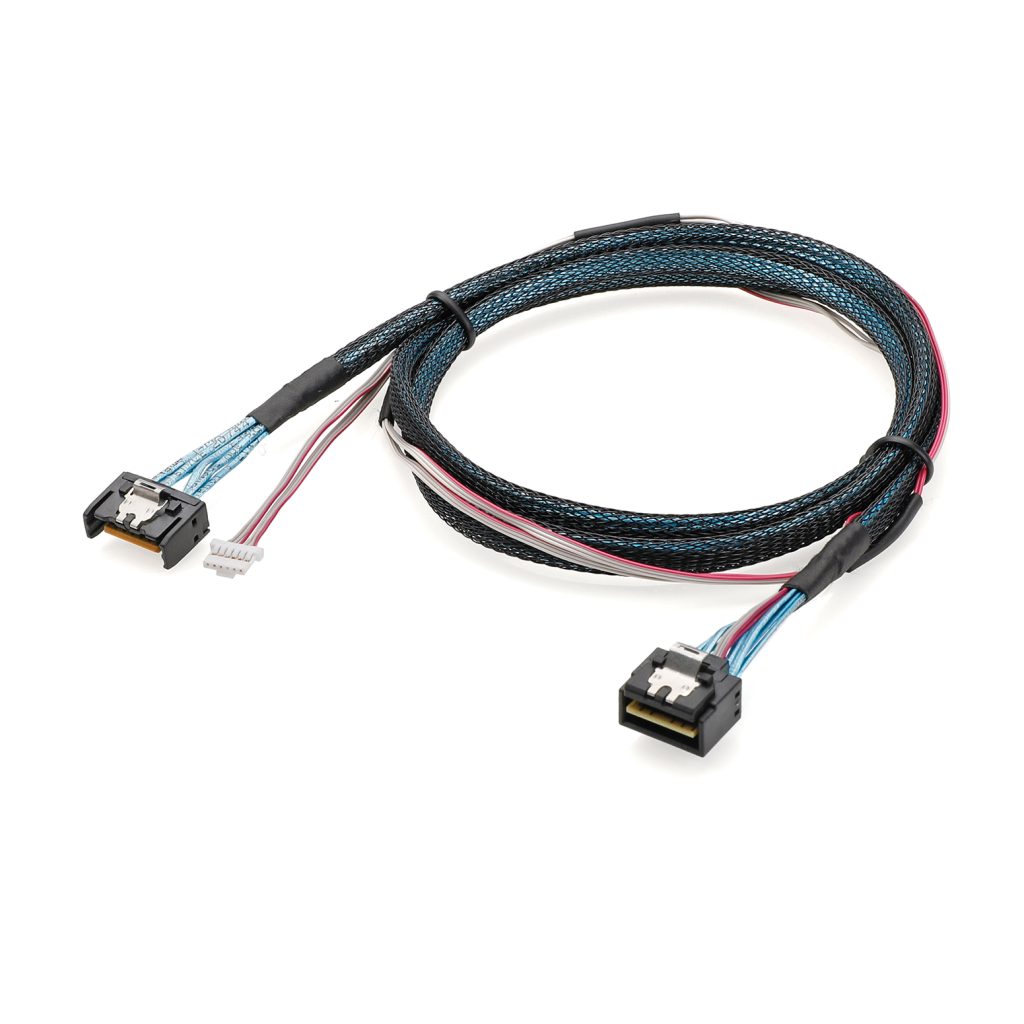

High-Speed Industrial Shielded Data Cable Assembly with Expandable Braited Sleeving for EMI/RFI Protection

Engineered for high-speed data integrity, this industrial-grade cable assembly features a dual-layer EMI/RFI shielding structure enclosed in a highly elastic, two-tone expandable braided mesh. Equipped with heavy-duty locking connectors, it ensures secure, lossless signal transmission in electrically noisy and mechanically demanding automated environments.

• Specific Application Scenarios:

  • CNC Machinery & Lathes: Connecting multi-axis control boards to main processing units under constant operational movement.

  • Servo Motor Control Systems: Feeding back precise encoder and encoder-to-drive signal data near high-power switchgear.

  • Medical Imaging Diagnostics: Transmitting ultra-pure digital data streams within X-ray, MRI, or ultrasound equipment consoles.

• Industry Pain Points Solved:

  • EMI/RFI Signal Corruption: The combination of aluminum foil and high-density tinned copper braiding blocks massive external electromagnetic noise, preventing data packet loss and signal distortion near large inverters or AC motors.

  • Harness Chafing & Dynamic Stress: The flexible PET expandable sleeving neatly bundles scattered branches together, protecting individual wires from being severed by moving machine parts while significantly boosting heat dissipation.

Key Features

• Robust dual-layer EMI/RFI shielding structure for lossless data transmission.
• Heavy-duty mechanical connector locks prevent accidental mating disconnection.
• Highly wear-resistant expandable mesh jacket extends operational lifespan.
