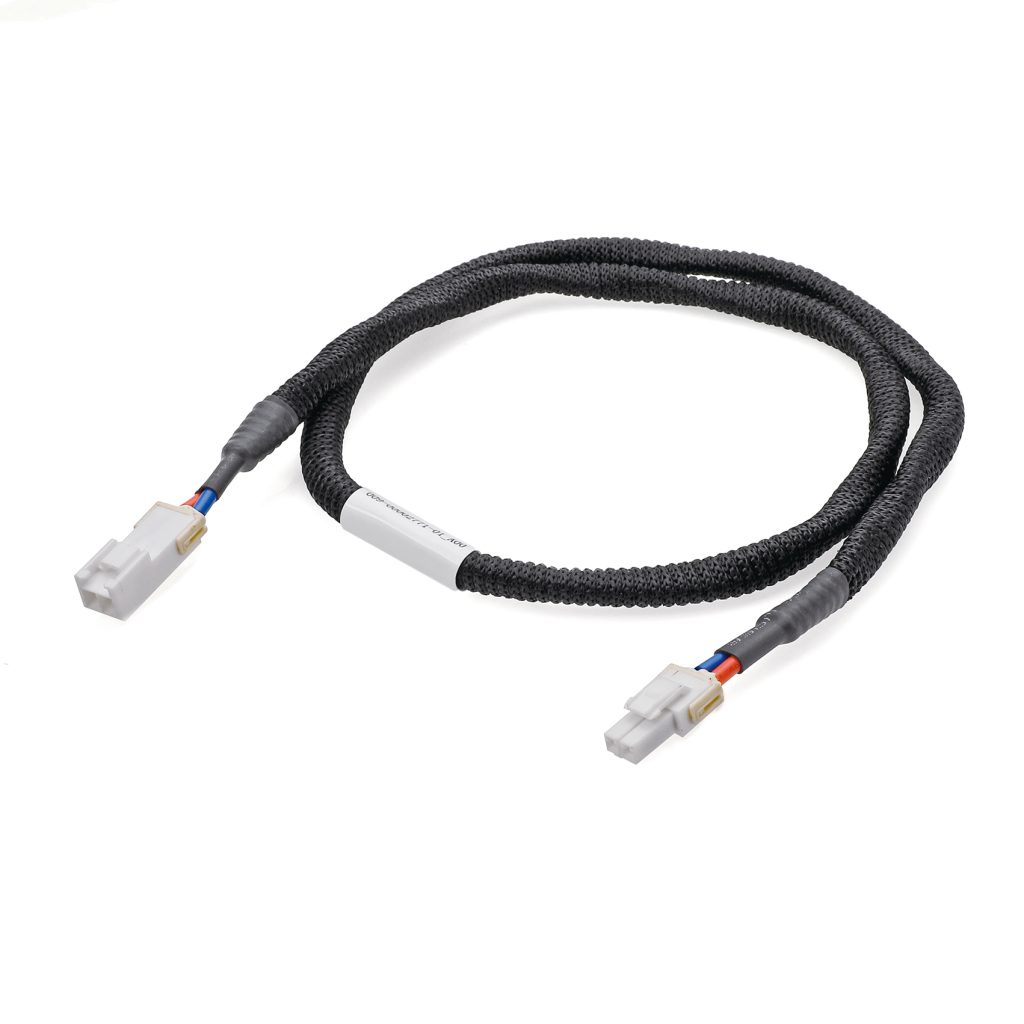

Premium Braided Textile Sleeve Wire Harness Assembly with Dual White Wire-to-Board Latching Connectors

This product is a top-tier B2B Premium Braided Textile Sleeved Wire Harness Assembly. It encapsulates an internal multi-core colored wire bundle (featuring red, blue, and control signal lines) within a highly dense, expandable black PET (polyethylene terephthalate) monofilament braided mesh. Both ends terminate in identical, industrial white wire-to-board housings featuring integrated mechanical positive latch-locks, reinforced with adhesive-lined heat-shrink strain relief boots.

• • Target Application Scenarios: Extensively integrated into High-End Computing Systems & Workstations for aesthetic and airflow management. It is equally optimized for Medical Robotic Arms & Surgical Instruments where internal cabling undergoes continuous articulation, High-Fidelity Pro-Audio Equipment to protect power loops from mechanical noise, and Commercial Kiosks / ATMs where internal lines cross sliding chassis hinges.

  • Technical Pain Points Solved: In moving mechanisms or compact enclosures, individual wire insulation jackets are prone to chafing, friction wear, and puncture from continuously rubbing against metal chassis frame cutouts, causing field electrical failures. The tough PET braided sleeve behaves as a highly durable sacrificial shield against mechanical abrasion. It also prevents loose wire nesting that chokes enclosure thermal airflow by condensing independent lines into a single sleek, ultra-flexible routing cylinder, and includes a central barcode/serial-number sleeve to streamline modern inventory management tracking.

Key Features

• Provides excellent cosmetic appearance alongside tough mechanical abrasion defense.
• Snap-in retention levers require zero tools to mate securely but hold fast against pulling forces.
• Heat shrink jackets prevent the braided sleeve ends from fraying or sliding backward.
• Keeps internal device cabling neat to maximize system cooling efficiency.
• Integrated tracking label simplifies assembly management and quality tracking.
