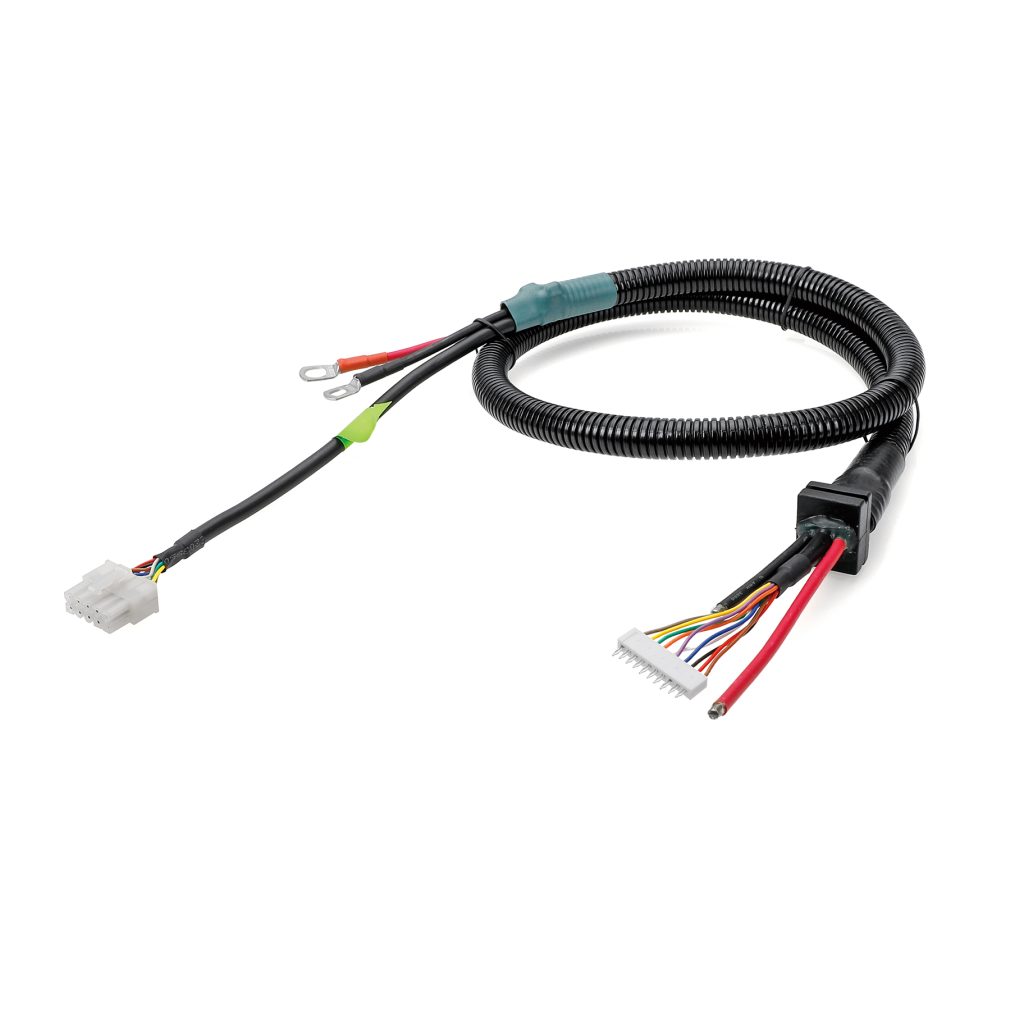

Flexible Corrugated Conduit Power & Signal Wire Harness Assembly with Ring Terminals for Industrial Control Cabinets

• What Type of Cable This Is: This product is an industrial-grade, heavy-duty Hybrid Power and Signal Wire Harness Assembly enclosed in Flexible Corrugated Conduit. It features a rugged, crush-resistant exterior plastic conduit sleeve housing a multi-wire breakout configuration. One end terminates in non-insulated tin-plated copper ring lug terminals for high-amperage power distribution, while the other ends feature a mix of multi-pin rectangular latching sockets and high-density PCB headers for signal control routing.

• Target Application Scenarios: Perfectly suited for Industrial Control Cabinets and Electrical Switchgears where main incoming power rails must interface directly with digital logic boards. It is widely used in Factory Automation Machinery & Robotics where cables cross pivoting joints, Outdoor Power Generators / Inverters exposed to external debris, and Commercial HVAC Control Panels linking high-draw compressor power lines alongside sensory pathways.

• Technical Pain Points Solved: Industrial environments expose cables to severe mechanical crushing, sharp sheet-metal edges, and chemical/oil spills, which can quickly slice standard wire insulation. The high-flexibility corrugated conduit acts as an impact armor block that isolates the internal wires completely. It also solves the problem of cluttered, messy cable routing and signal cross-talk by binding high-amp lines and low-voltage signal lines into a single structured harness layout, utilizing advanced heat-shrink junction boots to ensure watertight strain relief. Finally, it prevents terminal screw backing-out under high motor vibration via the heavy-duty ring lugs that bolt directly onto industrial terminal bars for zero contact drop-outs.

Key Features

• Superior crush, abrasion, and fluid ingress protection for interior wires.
• Combines high-amp power paths and low-voltage control signals into a single assembly.
• Provides high-torque screw-down connections for industrial power bars.
• Molded heat-shrink breakouts seal out dust and maintain structured cable routing.
• Rectangular PCB connectors feature snap-in locks to guarantee contact integrity.
