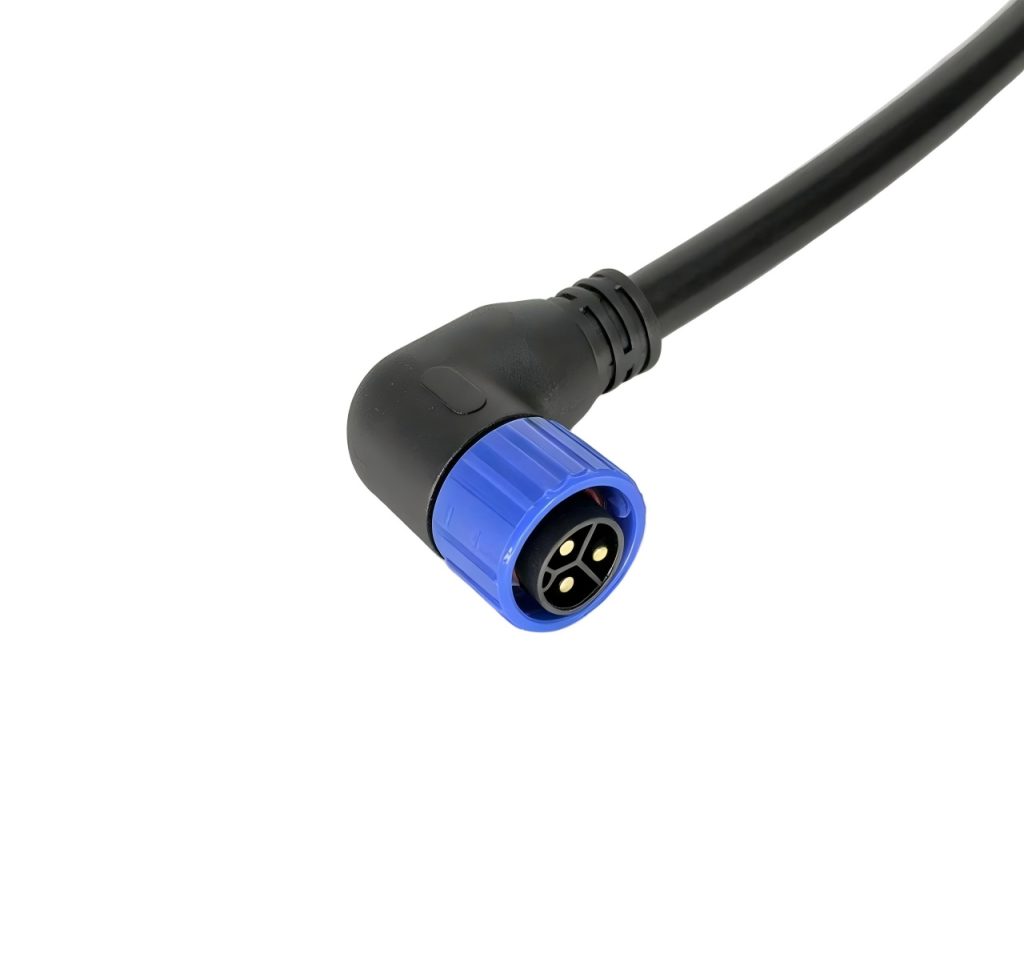

M25 3-Pin Right Angle 90-Degree Overmolded Waterproof Cable Assembly for Low-Profile Outdoor LED Lighting, Robotic Lawn Mowers, and Solar Micro-Inverters

The M25 3-Pin Right Angle (90-Degree) Overmolded Waterproof Cable Assembly is an industrial-grade power connectivity solution engineered specifically for applications where space is constrained and cable strain relief is critical. The 90-degree elbow design allows the cable to exit parallel to the mounting surface, drastically reducing the required clearance distance and preventing cable damage caused by sharp bending or accidental impacts.

Cable Selection & Construction: This heavy-duty cable assembly incorporates high-flexibility, weather-resistant multi-core rubber jacketed cables (such as H07RN-F 3G1.5mm²/2.5mm²) or outdoor PVC/PUR cables. The fine-stranded tinned copper conductors inside minimize electrical resistance and resist oxidation. Featuring a factory-molded right-angle connector boot and a secure blue locking nut, it creates a 100% watertight seal around the internal contacts, achieving a full IP67/IP68 ingress protection rating.

Primary Application Scenarios: Engineered for rugged outdoor usage, this 90-degree cable is ideal for low-profile robotic lawn mower chassis connections, flush-mounted outdoor LED wall washers and floodlights, solar micro-inverter arrays, compact industrial junction boxes, and marine deck equipment where straight connectors are too bulky or prone to snagging.

Key Features

• Eliminates cable bending strain in tight spaces and prevents accidental cable snagging or snapping.
• Factory-molded junction with internal rubber sealing gaskets blocks water, dew, mud, and dust.
• Heavily reinforced right-angle boot distributes pulling forces, extending cable fatigue life under mechanical stress.
• Engineered to handle up to 250V/400V and 25A high-current loads with minimal voltage drop.
• Cable length, outer jacket material (PVC, PUR, Rubber), wire stripping/tinning, or custom secondary terminals are built to your exact specs.
