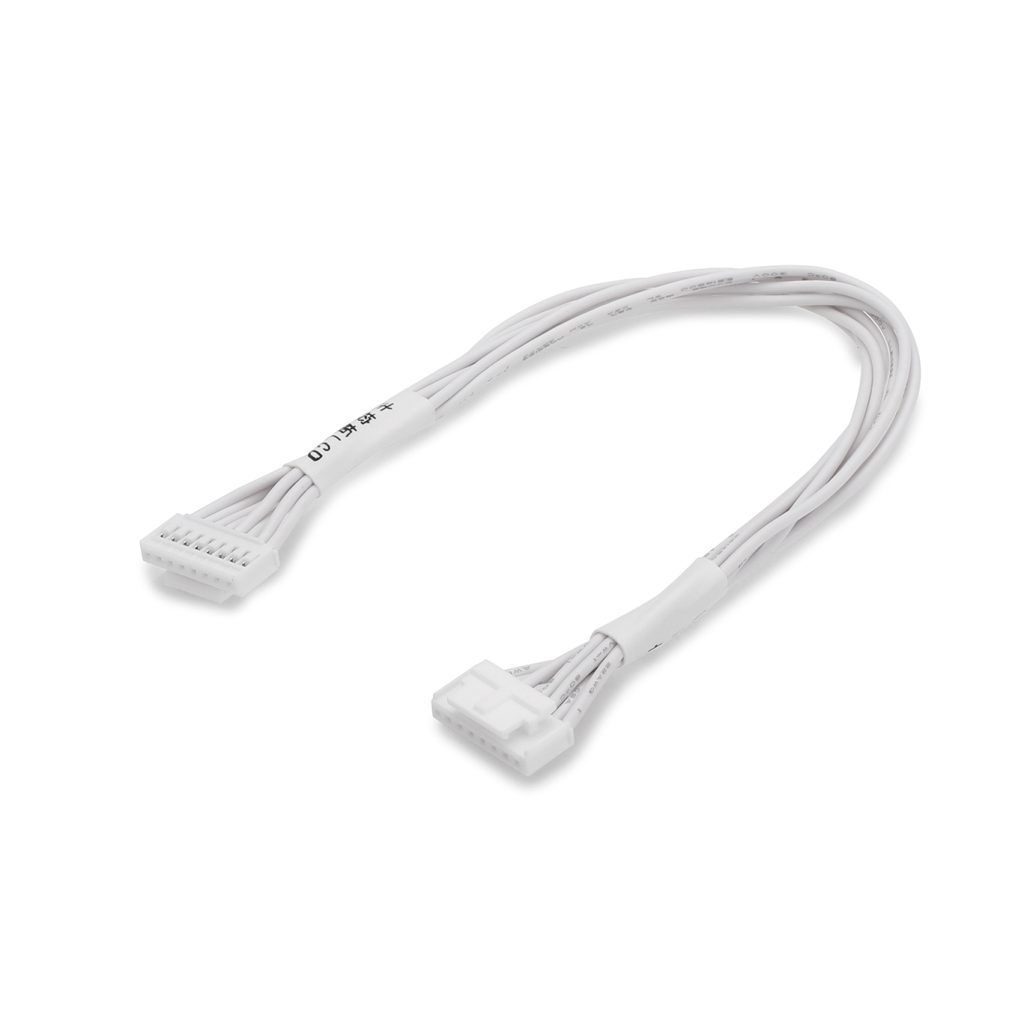

Custom 7-Pin Wire Harness Assembly for Internal Power & Signal Distribution

In modern industrial design, maintaining signal integrity within high-vibration internal environments presents a constant challenge for hardware engineers. This custom 7-pin wire harness assembly is engineered precisely to eliminate intermittent connections and signal dropouts in demanding applications like industrial automation, robotics, and smart appliances. By integrating a secure friction-lock housing and high-retention terminals, it ensures a tight, vibration-resistant connection that completely safeguards board-to-board and wire-to-board internal data links.

Managing restricted internal spatial envelopes is another critical bottleneck this assembly successfully solves. Utilizing ultra-flexible, low-profile UL-compliant conductors, the harness facilitates tight-radius routing around dense PCB components without placing mechanical stress on the wire insulation or solder joints. This 7-pin configuration streamlines operations by combining multi-channel signal routing and low-voltage power distribution into a single, cohesive channel. This organized approach significantly reduces internal electromagnetic interference (EMI) risks and eliminates messy wiring nests. Ready for immediate plug-and-play deployment, this polar-keyed assembly cuts down manual production line errors, directly optimizing factory assembly efficiency for high-throughput OEMs.

Key Features

• Secure Latching Mechanism: Friction-lock housing ensures reliable connectivity under continuous machine vibration.
• High Flexibility Wiring: Advanced outer insulation allows tight-radius bending without compromising insulation layer integrity.
• Anti-Mis-mating Design: Polarity keyed housing completely eliminates human assembly alignment errors.
• Premium Tin-Plated Copper: Enhanced corrosion resistance and exceptional solderability for industrial applications.
• Fully Custom Lengths: Tailored wire strip lengths, jacket colors, and pinouts based on specific PCB drawings.
