Industrial Control Cabinets, Railway Transit Electronics and Outdoor Sensor Enclosures M12 Male Panel Mount Bulkhead Cable Assembly

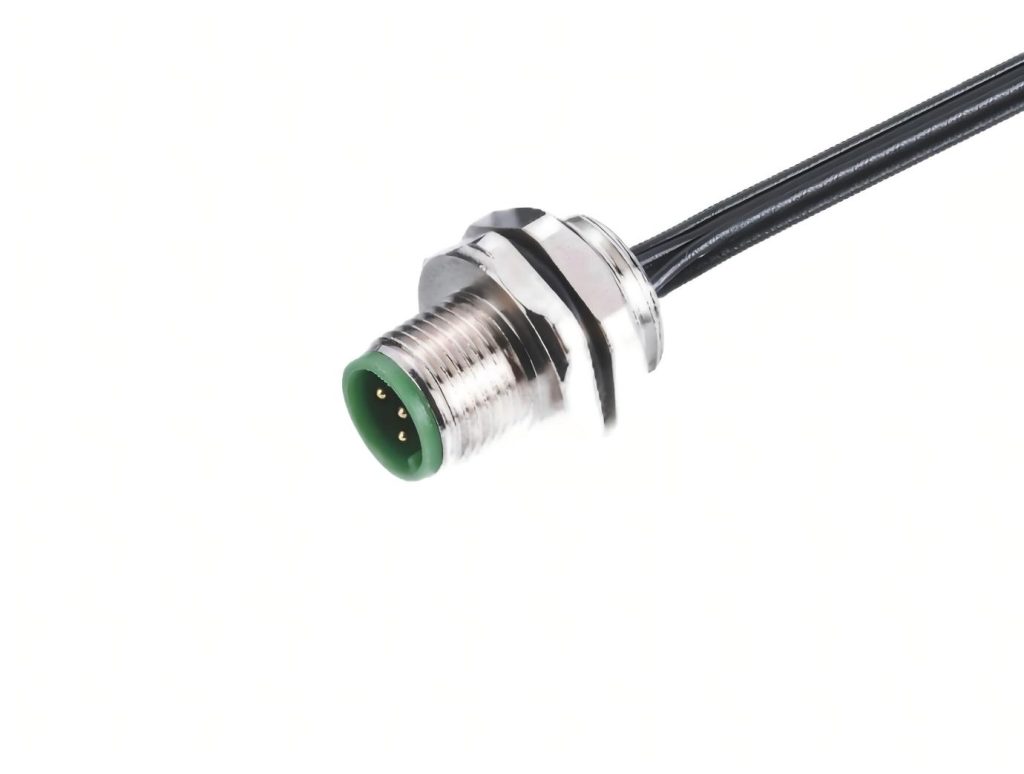

The M12 Male Panel Mount Bulkhead Connector with Wire Leads is a rugged, panel-sealed interconnect solution designed to establish secure electrical pass-throughs across control cabinet walls and equipment housings. Featuring a precision-machined metal body with a protective O-ring seal and a distinct high-grade green insulator core, it provides robust IP67/IP68 ingress protection against dust, water, and mechanical stress.

Cable Specifications & Internal Wiring: This connector is pre-assembled with UL-certified high-temperature PVC/TPE discrete single-core wires (flying leads/pigtails). The color-coded insulated copper leads allow direct internal soldering or crimping onto PCB boards, terminal blocks, and relay modules inside sealed chassis.

Primary Application Scenarios: Engineered for reliable cabinet-to-field connectivity, this panel connector is widely deployed in industrial PLC control cabinets, railway transit signal boxes, solar/wind inverter housings, outdoor LED display controllers, and remote sensor junction modules.

Key Features

• IP67 Panel Seal for Outdoor Enclosures: Rubber O-ring and rear locknut ensure liquid-tight sealing on outdoor sensor housings.
• Pre-Stripped Wire Leads for Fast Cabinet Wiring: Factory-attached flying leads eliminate field assembly time inside PLC control panels.
• Vibration-Resistant Metal Body for Rail Transit: Rugged nickel-plated brass shell withstands severe vibration in rolling stock signal systems.
• High-Temp Green Core for Inverters: Flame-retardant insulator core ensures stable power distribution in high-heat solar energy inverters.
• Gold-Plated Pins for Fieldbus Interfaces: Low-contact-resistance gold terminals prevent signal loss in industrial Ethernet and CANbus networks.
