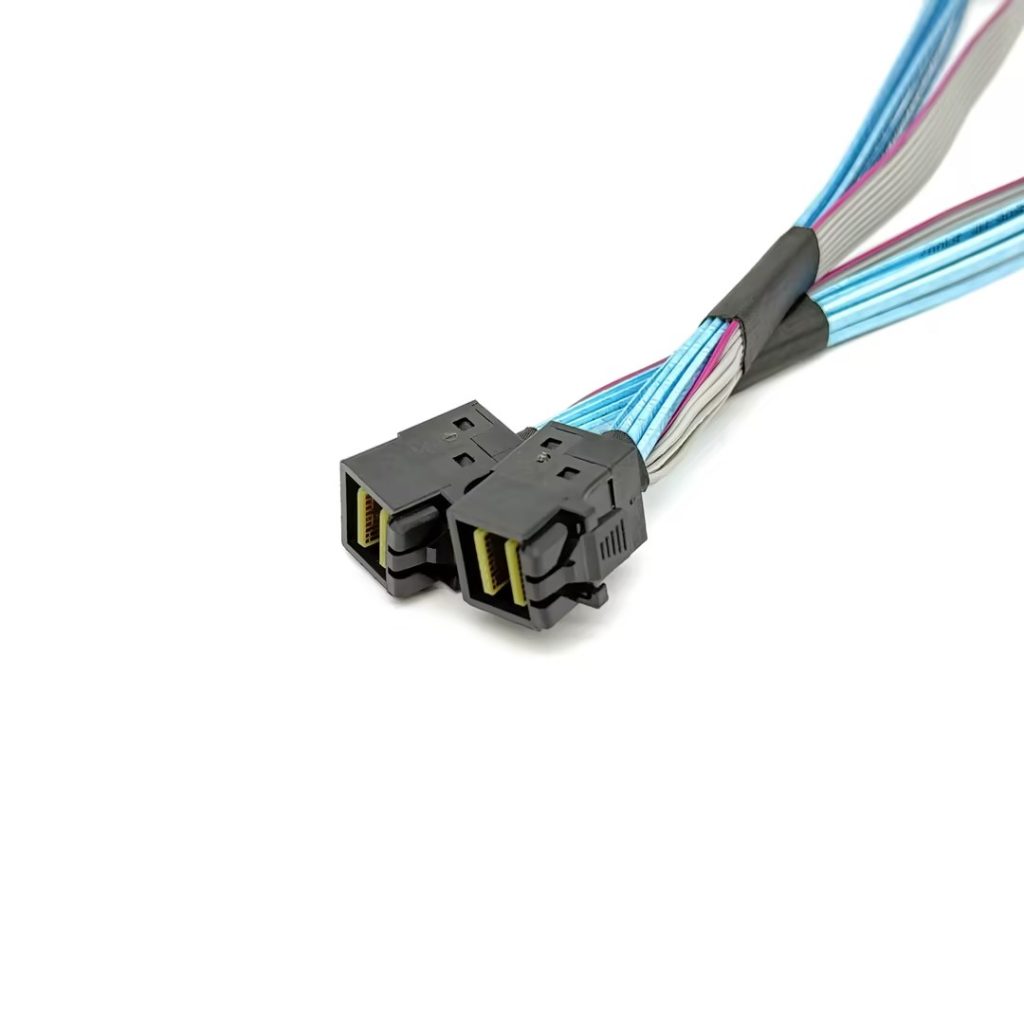

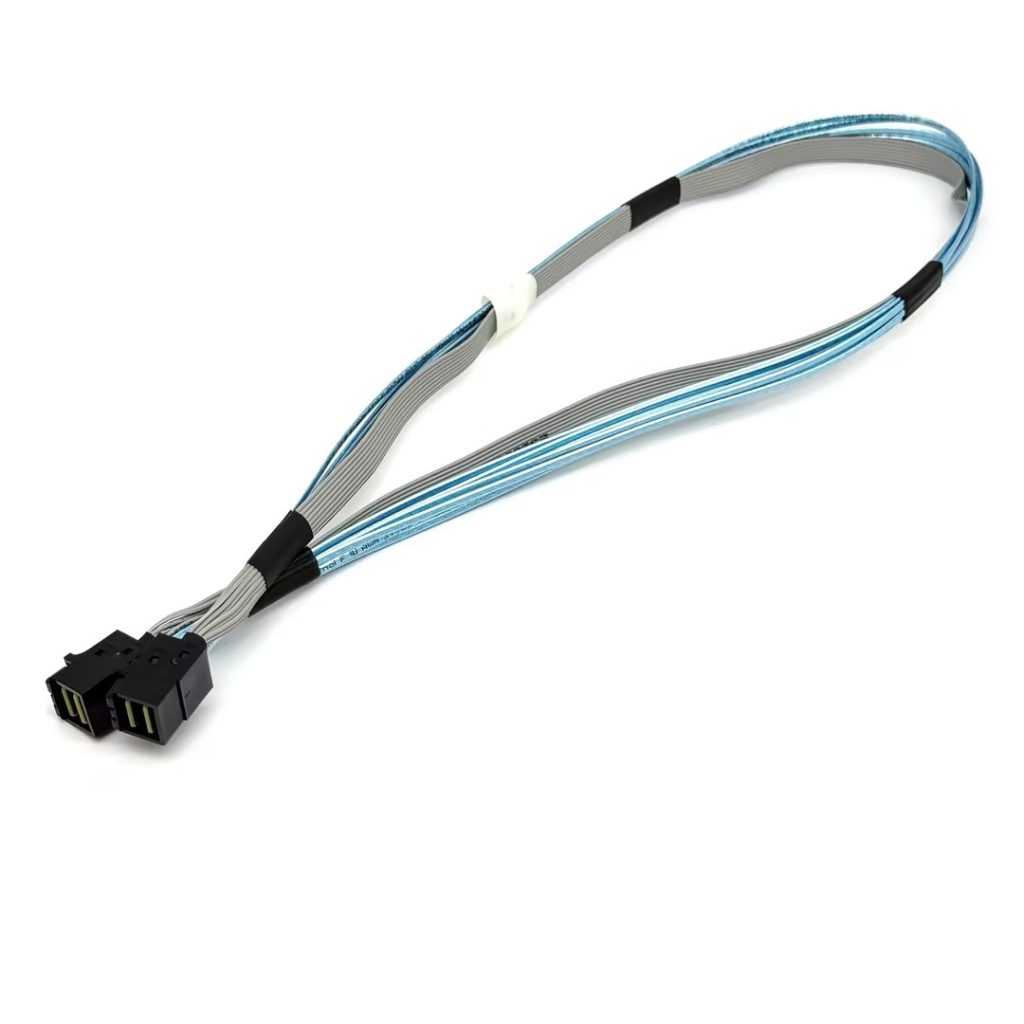

High-Speed Shielded Twinax Assembly for HPC (High Performance Computing)
High-Speed Shielded Twinax Assembly for HPC (High Performance Computing)
Product Specifications
Data RateSupports PCIe Gen 4.0 / 5.0 (Up to 32GT/s or higher)
Cable TypeTwinaxial / Shielded Differential Pairs
Protective LayerHigh-Density Braided Mesh / Heat-Shrink Tubing
Impedance85 Ohm / 100 Ohm Optimized for High-Speed Signal
Application IndustryDatacenters, Cloud Computing, Edge Servers, Storage Arrays
ComplianceRoHS, REACH
Product Description
The High-Speed Internal Cable Assembly Series provides a robust and reliable connectivity foundation for modern Enterprise Datacenters and AI Server clusters. These assemblies feature precision-engineered twinax wiring with advanced shielding to minimize crosstalk and signal attenuation, ensuring maximum throughput for PCIe Gen 4/5 storage and network interface cards. Wrapped in high-density braided mesh for enhanced durability and thermal management, these cables are designed to withstand the tight routing and high-heat environments typical of High-Performance Computing (HPC) systems and cloud storage arrays.
Key Features
- Ultra-High Bandwidth: Optimized for next-generation data rates, supporting seamless integration with Server GPU and NVMe SSD modules.
- Superior Signal Integrity: Advanced differential pair shielding drastically reduces EMI/RFI interference, maintaining low-latency data flow in mission-critical datacenter operations.
- Ruggedized Thermal Protection: Features premium braided sleeving that provides mechanical protection while facilitating airflow for optimal cooling in high-density server racks.
- Flexible Routing Design: Engineered for high flexibility, allowing for complex cable management in compact Edge Computing and Cloud Server chassis.
- Secure Locking Mechanism: Equipped with industrial-grade connectors to ensure a stable, vibration-proof connection for enterprise-level storage systems (SAN/NAS).
