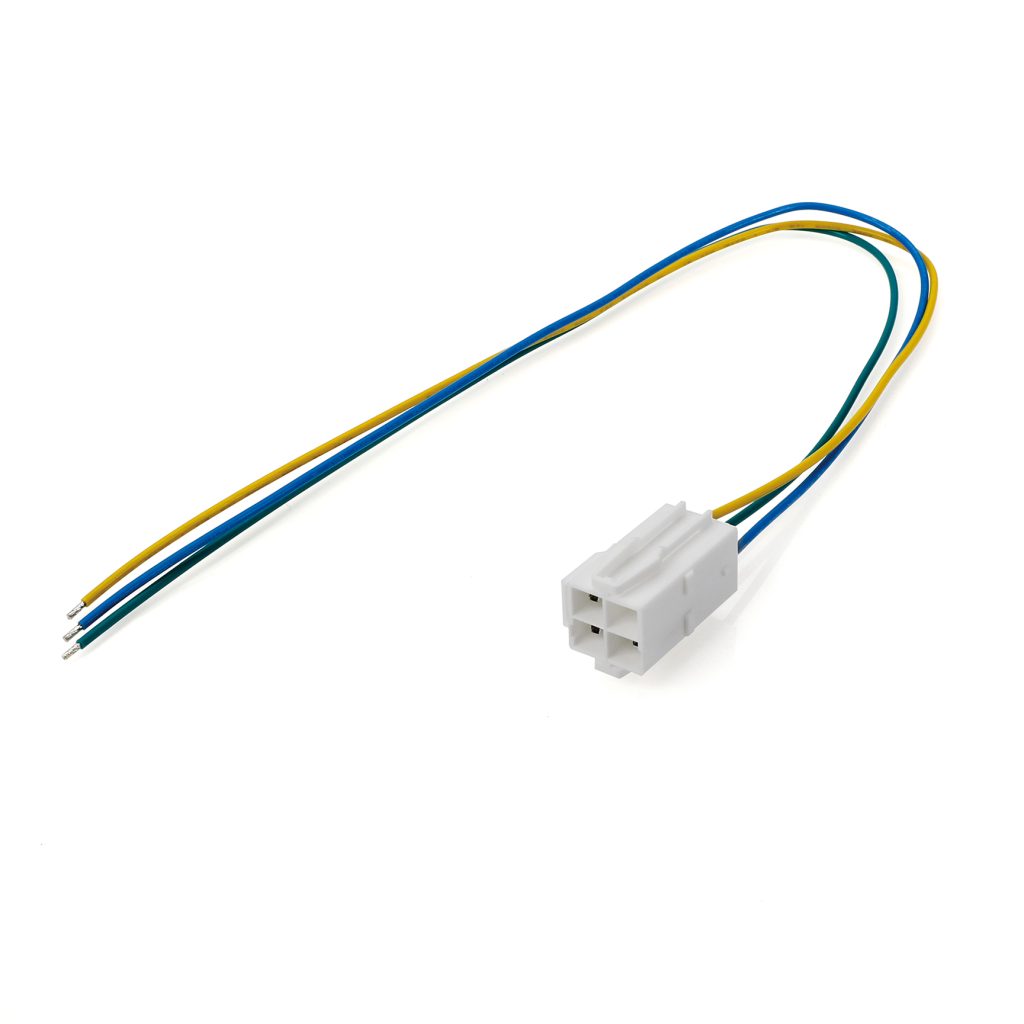

4-Pin Square Matrix Power Connector Housing with Pre-Stripped Color-Coded Pigtail Lead Wires

This product is an industrial-grade 4-Pin Square Matrix Power Housing Pigtail Lead Assembly. It consists of a heavy-duty, 2x2 multi-position square nylon power receptacle plug housing equipped with three high-conductivity, distinct color-coded wires (Yellow, Blue, Green) leaving one cavity blank for electrical pathway isolation. The wire ends are processed via automated machinery to feature precision pre-stripped, tin-dipped bare tips ready for rapid field connection.

• Target Application Scenarios: Extensively utilized in Industrial LED Lighting Arrays and Commercial Greenhouse Grow Lights to bridge main power lines to incoming driver modules. It is perfectly suited for Electric Motor Phase Connections (such as CNC stepper motors), industrial ventilation fan switches, and AC/DC Power Splicing Circuits where equipment modules require a heavy-duty wire-to-wire quick disconnect point.

• Technical Pain Points Solved: Forcing installation field crews to carry complex crimping tools onto industrial worksites often results in substandard crimping quality, high contact resistance, and prolonged field labor costs. This factory pre-crimped, tested pigtail allows workers to complete wire splicing instantly via wire nuts, terminal blocks, or direct soldering. Additionally, compact connectors in dusty or humid spaces risk electrical arcing and voltage creepage breakdown across pins; this square matrix housing geometry places massive physical nylon isolation walls between each pin cavity, confidently supporting high current loads up to 10A per pin without arcing risk.

Key Features

• Tin-treated wire tips prevent copper strands from fraying during wire-nut splicing or board soldering.
• Maximizes creepage distance between active high-current pins for superior safety.
• Bright Yellow, Blue, and Green wire insulation ensures fast phase matching.
• Integrated structural ramp creates a click-verified secure mechanical connection.
• Thick gauge terminals easily manage continuous power draw without overheating.
